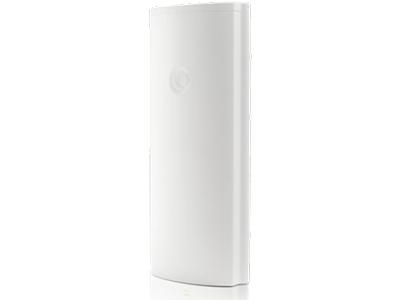

CAMBIUM NETWORKS ePMP 4x4 MU-MIMO

ePMP 3000 Sector Antenna
Cambium Networks has deployed more than five million radios around the world achieving unparalleled degrees of scalability. Continuing the tradition of designing and manufacturing industry leading antenna solutions, the 4×4 ePMP 3000 Sector Antenna encompasses all the key diff erentiations of the Cambium Antenna line and adds 4X4 Multi User MIMO Capability. Designed to work in 5 GHz spectrum and 90 degree coverage, the antenna is an integral part of the ePMP 3000 Access Point and allows for Multi User MIMO Operation.

FREQUENCY RE-USE
Designed for ABAB channel re-use (two channels covering four sectors), the sector antenna has a minimum 30 dB front to back ratio over a wide rear facing aperture.

CHANNEL FLEXIBILITY
Consistent gain from 4.9 to 6.0 GHz allows the operator to select a channel anywhere in the band and achieve the expected performance.

CONSISTENT COVERAGE
Excellent null fill capabilities of the antenna allow for broad geographical coverage within a sector even near the base of the tower and the edges of the sector.

DESIGNED FOR THE INSTALLER
Small, compact design, integrated ePMP radio mount and GPS antenna integration.

PREDICTABLE PERFORMANCE
The sector antenna is integrated into Cambium Networks LINKPlanner. The 3D model shows coverage at all elevations and across the azimuth.
