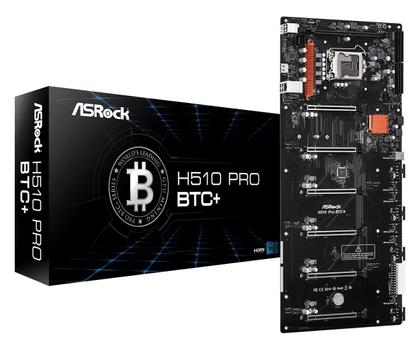

ASROCK H510 PRO BTC+

H510 Pro BTC+

• Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors
• Supports DDR4 3200MHz
• Graphics Output: HDMI
• 6 PCIe 3.0 x16, 1 Mining Port (M_Port1 at x1)
• 1 SATA3, 1 M.2 (SATA3)
• 2 Rear USB 3.1 Gen1 Type-A
• 4 USB 2.0 Type-A (2 Rear, 2 Front)
• Intel® Gigabit LAN
• 2 Extra 24-pin ATX Power Connector
• Onboard Power On / Reset Button
• Fully Independent Power Rail

• Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200)
• Digi Power design
• 4 Power Phase design
• Supports Intel® Turbo Boost Max 3.0 Technology

• Intel® H510

• 1 x DDR4 DIMM Slot
• Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 nonECC, unbuffered memory
• Supports ECC UDIMM memory modules (operate in nonECC mode)
• Max. capacity of system memory: 32GB
• Supports Intel® Extreme Memory Profile (XMP) 2.0

• 128Mb AMI UEFI Legal BIOS with multilingual GUI support
• ACPI 6.0 Compliant wake up events
• SMBIOS 2.7 Support
• CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCIN AUX Voltage Multiadjustment

• 11th Gen Intel® Core™ Processors support Intel® Xe Graphics Architecture (Gen 12). 10th Gen Intel® Core™ Processors support Gen 9 Graphics
• Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
• Supports HDCP 2.3 with and HDMI 1.4 Port

• Gigabit LAN 10/100/1000 Mb/s
• Giga PHY Intel® I219V
• Supports WakeOnLAN
• Supports Lightning/ESD Protection
• Supports Energy Efficient Ethernet 802.3az
• Supports PXE

• 6 x PCI Express 3.0 x16 Slots (PCIE1 at x16 / PCIE2~6 at x1)
• 1 x Mining Port (M_Port1 at x1)

• 1 x SATA3 6.0 Gb/s Connector, supports NCQ, AHCI and Hot Plug
• 1 x M.2 Socket, supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module

• 1 x System Panel Header
• 1 x SPI TPM Header
• 1 x Power LED and Speaker Header
• 1 x CPU Fan Connector (4pin)
• 8 x Chassis Fan Connectors (4pin)
• 3 x 24 pin ATX Power Connectors
• 1 x 8 pin 12V Power Connector
• 4 x 4 pin PCIe Power Connectors
• 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
• 1 x Power Button
• 1 x Reset Button

• 1 x PS/2 Mouse/Keyboard Port
• 1 x HDMI Port
• 2 x USB 2.0 Ports (Supports ESD Protection)
• 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
• 1 x RJ45 LAN Port with LED (ACT/LINK LED and SPEED LED)

• ASRock Super Alloy
  • Premium 50A Power Choke
  • Sapphire Black PCB
  • High Density Glass Fabric PCB ASRock Steel Slot
• ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
• ASRock Live Update & APP Shop

• Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

• Quick Installation Guide, Support CD
• 1 x SATA Data Cable
• 1 x Screw for M.2 Socket

• Fan Tachometer: CPU, Chassis Fans
• Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis Fans
• Fan MultiSpeed Control: CPU, Chassis Fans
• Voltage monitoring: CPU Vcore, +12V, +5V, +3.3V

• 20.1in x 8.8in, 50.1 cm x 22.4 cm
• Solid Capacitor design

• Microsoft® Windows® 10 64bit
• Linux: Ubuntu 16.04 LTS / Fedora 25

• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
