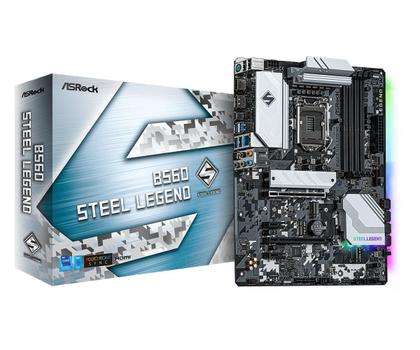

ASROCK B560 Steel Legend - Bundkort - ATX - LGA1200 sokkel - B560 - USB-C Gen2, USB 3.2 Gen 1, USB-C Gen 2x2 - 2.5 Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)

B560 Steel Legend

• Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors
• 10 Phase Dr.MOS Power Design
• Supports DDR4 4800MHz (OC)
• 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1
• 1 x M.2 Key-E for WiFi
• Graphics Output Options: HDMI, DisplayPort
• 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
• 6 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4), 1 x Ultra M.2 (PCIe Gen3 x4)
• 1 x M.2 (PCIe Gen3 x2 & SATA3)
• 1 x Front USB 3.2 Gen2x2 Type-C (20 Gb/s)
• 1 x Rear USB 3.2 Gen2 Type-C (10 Gb/s)
• 6 x USB 3.2 Gen1 (4 x Rear, 2 x Front)
• Dragon 2.5 Gigabit LAN

• ASRock USB 3.2 Gen2
  • ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
  • ASRock USB 3.2 Gen2 TypeC Port (10 Gb/s)
• ASRock Super Alloy
  • XXL Aluminum Alloy Heatsink
  • Premium 60A Power Choke
  • 50A Dr.MOS
  • Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
  • Matte Black PCB
  • High Density Glass Fabric PCB
• 2.5G LAN
• ASRock Steel Slot
• ASRock Full Coverage M.2 Heatsink
• ASRock Hyper M.2 (PCIe Gen4x4)
• ASRock POST Status Checker (PSC)
• ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
• ASRock Live Update & APP Shop

• Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200)
• Digi Power design
• 10 Power Phase design
• Supports Intel® Turbo Boost Max 3.0 Technology

• Intel® B560

• Dual Channel DDR4 Memory Technology
• 4 x DDR4 DIMM Slots
• 11th Gen Intel® Core™ Processors support DDR4 nonECC, unbuffered memory up to 4800+(OC)
• 10th Gen Intel® Core™ Processors support DDR4 nonECC, unbuffered memory up to 4666+(OC)
• Supports ECC UDIMM memory modules (operate in nonECC mode)
• Max. capacity of system memory: 128GB
• Supports Intel® Extreme Memory Profile (XMP) 2.0
• 15μ Gold Contact in DIMM Slots

• 128Mb AMI UEFI Legal BIOS with multilingual GUI support
• ACPI 6.0 Compliant wake up events
• SMBIOS 2.7 Support
• CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCIO 1 2, VPPM, VCCIN AUX, VCCST Voltage Multiadjustment

• 11th Gen Intel® Core™ Processors support Intel® Xe Graphics Architecture (Gen 12). 10th Gen Intel® Core™ Processors support Gen 9 Graphics
• Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
• Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, UHD/HDR Bluray Disc
• Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
• Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
• Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
• Supports HDCP 2.3 with HDMI 2.0 and DisplayPort 1.4 Ports

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• Supports Surge Protection
• Gold Audio Jacks
• 15μ Gold Audio Connector
• Nahimic Audio

• 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• Dragon RTL8125BG
• Supports Dragon 2.5G LAN Software
• Smart Auto Adjust Bandwidth Control
• Visual User Friendly UI
• Visual Network Usage Statistics
• Optimized Default Setting for Game, Browser, and Streaming Modes
• User Customized Priority Control
• Supports WakeOnLAN
• Supports Lightning/ESD Protection
• Supports Energy Efficient Ethernet 802.3az
• Supports PXE

• 11th Gen Intel® Core™ Processors
  • 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x2 (PCIE3))
• 10th Gen Intel® Core™ Processors
  • 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x2 (PCIE3))
• 2 x PCI Express 3.0 x1 Slots
• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)
• 15μ Gold Contact in VGA PCIe Slot (PCIE1)

• 6 x SATA3 6.0 Gb/s Connectors, support Intel® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug
• 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Only supported with 11th Gen Intel® Core™ Processors)
• 1 x M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)
• 1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)

• 1 x SPI TPM Header
• 1 x Chassis Intrusion and Speaker Header
• 2 x RGB LED Headers
• 2 x Addressable LED Headers
• 1 x CPU Fan Connector (4pin)
• 1 x CPU/Water Pump Fan Connector (4pin) (Smart Fan Speed Control)
• 5 x Chassis/Water Pump Fan Connectors (4pin) (Smart Fan Speed Control)
• 1 x 24 pin ATX Power Connector (HiDensity Power Connector)
• 1 x 8 pin 12V Power Connector (HiDensity Power Connector)
• 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
• 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
• 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)

• 3 x Antenna Mounting Points
• 1 x PS/2 Mouse/Keyboard Port
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 1 x Optical SPDIF Out Port
• 1 x USB 3.2 Gen2 TypeC Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
• 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection)
• 2 x USB 2.0 Ports (Supports ESD Protection)
• 1 x RJ45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

• Software
  • ASRock Motherboard Utility (ATuning)
  • ASRock Dragon 2.5G LAN Software
  • ASRock Polychrome SYNC
• UEFI
  • ASRock EZ Mode
  • ASRock Full HD UEFI
  • ASRock My Favorites in UEFI
  • ASRock Instant Flash
  • ASRock Internet Flash

• Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

• Quick Installation Guide, Support CD, I/O Shield
• 2 x SATA Data Cables
• 4 x Screws for M.2 Sockets
• 1 x Standoff for M.2 Socket

• Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
• Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
• Fan MultiSpeed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
• CASE OPEN detection
• Voltage monitoring: CPU Vcore, VCCIN AUX, DRAM, VCCIO, VPPM, VCCSA, CPU PLL, +12V, +5V, +3.3V

• ATX Form Factor: 12.0in x 9.6in, 30.5 cm x 24.4 cm

• Microsoft® Windows® 10 64bit

• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
